Product DescriptionSOLAR MODULES |
240W Polycrystalline Solar Panel & M190 Micro-Inverter
|
Product Description

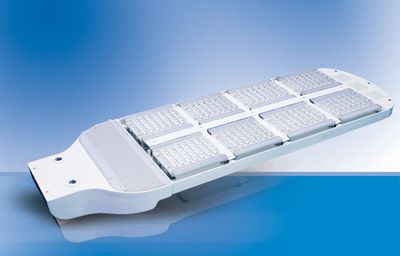

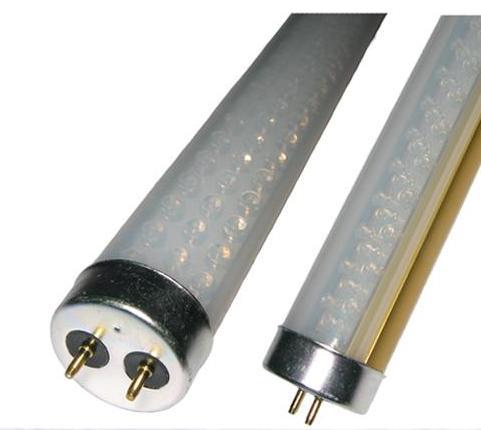

LED LIGHTS
LED uses solid semi-conductor as lightening materials. It has many
advantages such as high lightening efficiency, low power consumption,
long life-span, security, quick response, environment-friendly,
low operation temperature, etc. Under the same brightness
condition, the power consumption is as much as 1/10 of
incandescent lamp, 20 times of fluorescent lamp, but the
life-span is as long as 50 times of incandescent lamp,
20times of fluorescent lamp. So it is trend that LED
light will instead of conventional lights.

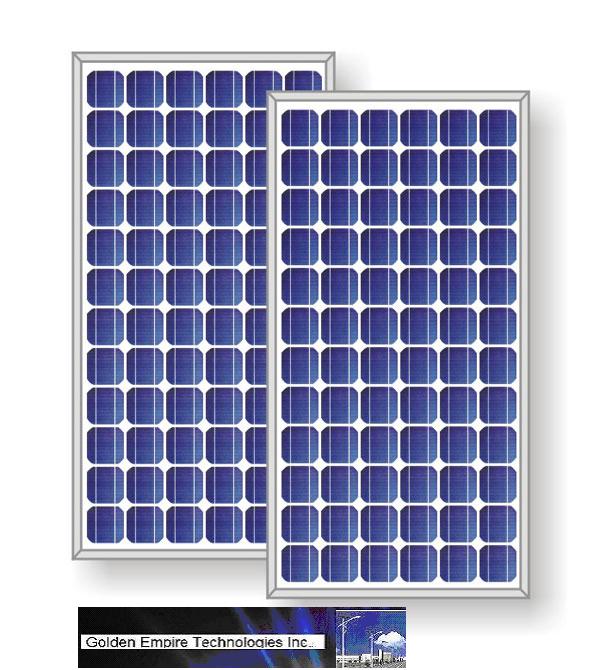

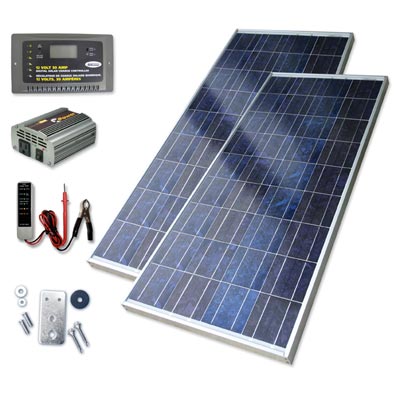

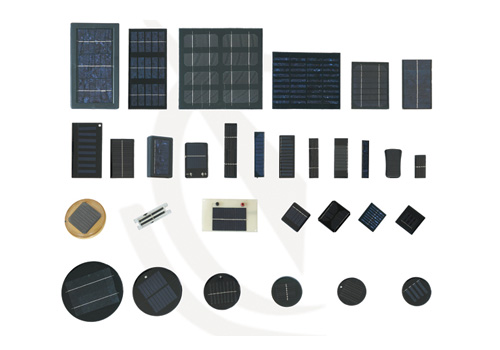

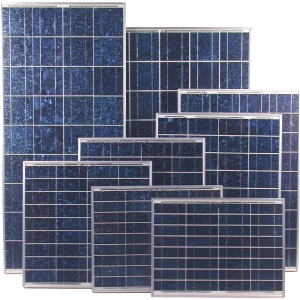

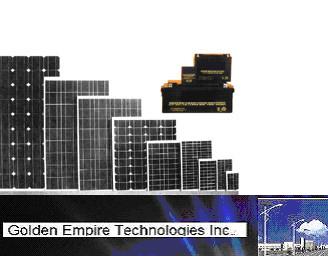

Solar Module (5-300W)
Product Description

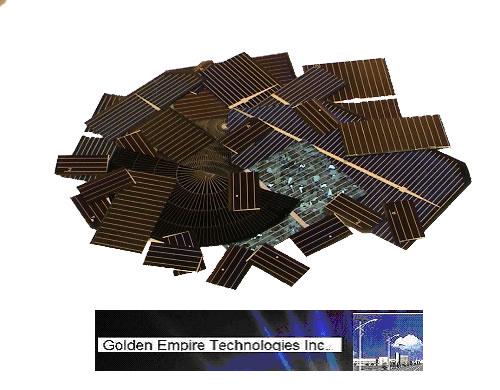

Solar cells in the main function of conversion of light
into electricity, the phenomenon known as the photovoltaic effect.
Among the more sunlight batteries generally more practical
and there are mono crystalline silicon solar cells, polycrystalline
Product Description
WIND GENERATORS

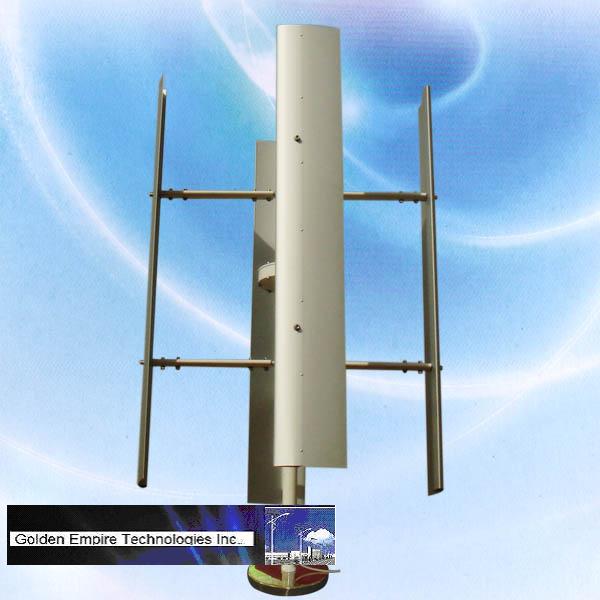

Vertical Axis Wind Turbine System (200W-200KW)
Product Description
Vertical Axis Wind Turbine Generator
We can supply Vertical Axis Wind turbines from 200W to 200KW. The vane is made on the principle of the wing of the aircraft while the structure is made on the principle of vertical whirlwind which is of the advantage of no influence caused by the wind direction. This efficiency of electric energy production is 18% higher than the horizontal whirlwind generator being used at present. This system is of a position-fixed system; hence the electricity transmission wire will not be stranded in operation. Such system is of a silent Vertical Axis Wind Turbine, thus makes it possible to be installed at any places including in some bad locations like on the roof of the house, on the boat, in the snow area and on the lighthouse and in the sea or river area. Such system is developed to replace the old system used at present. The old system is of the horizontal whirlwind. In operation the face of the vane of such old system is heavily pressured by the strong wind which will easily cause the vane deformed and which will definitely cause the heavy noise and the reduction of the turn speed and the deficiency of electric energy production.
As a professional manufacturer and exporter, we are mainly supply the domestic wind turbine from 200w-50kw, the JD series wind turbine from 200w up to 25kw, which are suitable for designing as on-grid system for family using. Numbers of Blade 3 pcs
Material of Blade : Complex Resin
Diameter of Wind Rotor 13m
Start (out-in) wind speed 4m/s
Working wind speed 4-30m/s
Rated speed 180 rpm
Security wind speed 50m/s
Wind energy ratio 45%
Generator Three phase Permanent magnet generator
Generator rated power 25000w
Max output power 29000w
Charging voltage 540Vdc
Output voltage of Inverter
Single phase 220-240Vac/50HZ 110-130Vac /60HZ
Three Phases 380-415Vac/60HZ
Stop method by manual brake and electromagnet control
Wind direction tracking method By Tail-vane yawing
Speed adjustment method By Tail-vane and servo motor adjustment
Protect method intelligent control full-automatically
Tower type Galvanized tapered tower with installation round fence and ladder
Tower height & weight 15m/3200kgs (for tapered tower)
Charging control intelligent control full-automatically
Inverter power supply pure sine wave
Battery Matching (for off-grid wind system)
120 pcs 12Vdc-200AH Lead-acid or colloid batteries
(against the condition of wind source at installation site)
Grid tied inverter matching Input: 540Vdc Output: 240Vdc Recommend: 30kw on-grid inverter. Time of charging (off-grid type) About 20 hours
Annual power generation About 74500 KWH
(annual average wind speed above 7.5m/s )
Packing details
Total packages 12pkgs
Total N.W / G.W 4400kgs / 4500kgs
Total Volume 16.6CBM
Model: JD
Standard: Horizontal Axis
Wind & Solar Turbine (SW-WP)
Product Description
HY--1500W with the tower on grid Technical parameter
Rated power(W) 1500 Material of the blades Reinforced fibber glass
Rated wind speed(m/s) 9 Speed regulation method Yawing and electric magnet
Startup wind speed(m/s) 3 Generator style 3-phase AC PM
Working wind speed(m/s) 3~25 Tower height (m) 6
Survived wind speed(m/s) 50 Stop method Brake by hand drag
Rated rotate speed (r/min) 360 Main machine weight(kg) 120
Rotor Diameter(m) 3.2 Dragline steel tower weight(kg) 50
Working voltage(v) DC48V/240/AC220V Independent tower weight (kg) 180

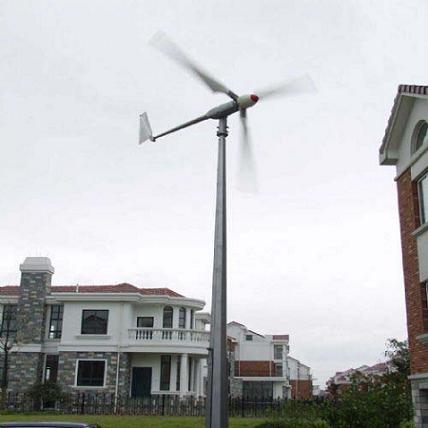

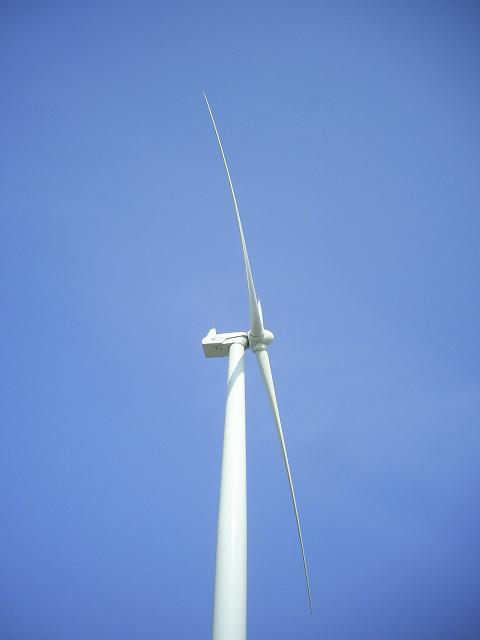

Wind Generator (HY-1500W)
Product Description
HY--1500W with the tower on grid Technical parameter
Rated power (W) 1500 Material of the blades Reinforced fibber glass
Rated wind speed (m/s) 9 Speed regulation method Yawing and electric magnet
Start up wind speed (m/s) 3 Generator style 3-phase AC PM
Working wind speed (m/s) 3~25 Tower height (m) 6
Survived wind speed (m/s) 50 Stop method Brake by hand drag
Rated rotate speed (r/min) 360 Main machine weight(kg) 120
Rotor Diameter (m) 3.2 Dragline steel tower weight(kg) 50
Working voltage (v) DC48V/240/AC220V Independent tower weight (kg) 180
Product Description
As a professional manufacturer and exporter, we are mainly
supply the domestic wind turbine from 200w-50kw,
the JD series wind turbine from 200w up to 25kw,
which are suitable for designing as on-grid system for
family using. Numbers of Blade 3 pcs
Material of Blade : Complex Resin
Diameter of Wind Rotor 13m
Start (out-in) wind speed 4m/s
Working wind speed 4-30m/s
Rated speed 180 rpm
Security wind speed 50m/s
Wind energy ratio 45%
Generator Three phase Permanent magnet generator
Generator rated power 25000w
Max output power 29000w
Charging voltage 540Vdc
Output voltage of Inverter
Single phase 220-240Vac/50HZ 110-130Vac /60HZ
Three Phases 380-415Vac/60HZ
Stop method by manual brake and electromagnet control
Wind direction tracking method By Tail-vane yawing
Speed adjustment method By Tail-vane and servo motor adjustment
Protect method intelligent control full-automatically
Tower type Galvanized tapered tower with installation round fence and ladder
Tower height & weight 15m/3200kgs (for tapered tower)
Charging control intelligent control full-automatically
Inverter power supply pure sine wave
Battery Matching (for off-grid wind system)
120 pcs 12Vdc-200AH Lead-acid or colloid batteries
(against the condition of wind source at installation site)
Grid tied inverter matching Input: 540Vdc Output:
240Vdc Recommend: 30kw on-grid inverter
Time of charging (off-grid type) About 20 hours
Annual power generation About 74500 KWH
(annual average wind speed above 7.5m/s )
Packing details
Total packages 12pkgs
Total N.W / G.W 4400kgs / 4500kgs
Total Volume 16.6CBM
Model: JD
Standard: Horizontal Axis
Click here to start typing your text
Click here to start typing your text
Click here to start typing your text
Click here to start typing your text

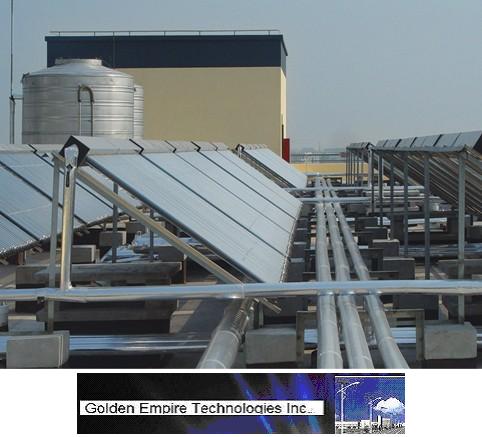

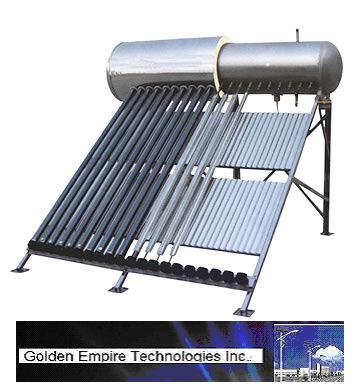

Solar Hot Water (SW-TS)
Product Description
Description:
Vacuum tube: 58-1800mm high borosilicate 3.3 glass vacuum tube with tube wall thickness of 1.6mm.
Inner tank material: SUS304-2B Stainless Steel with thickness
Outer tank material: Color powder coating steel / Stainless steel
Frame material: Galvanized steel plate with thickness of 1.5mm
Capacity of water tank: 200L, 240L, 300L, 360L 40L/person for Max consumption
Cooper coil: With dia of 12mm and wall thickness of 1.0mm
Cooper coil length : 200L for 30m, 240L & 300L for 35m, 360L for 40m.
Heat preservation layer: High pressure automatic polyurethane foaming layer with thickness of 55mm
Heat preservation hours: 48-72 hours
Hailstone resistance: Dia.≤25mm
Optional accessories: Electrical heater

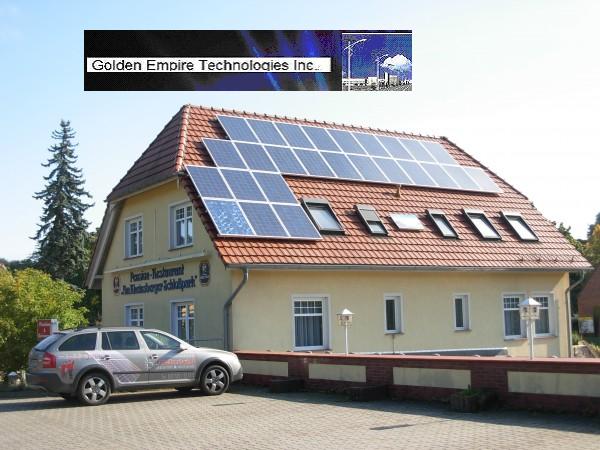

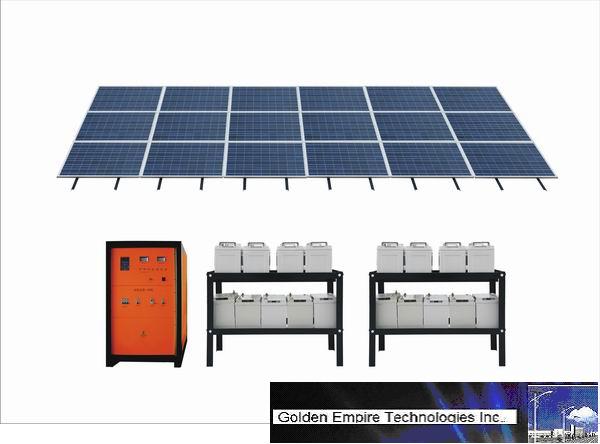

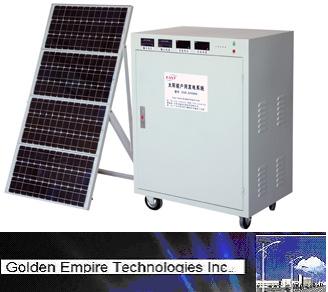

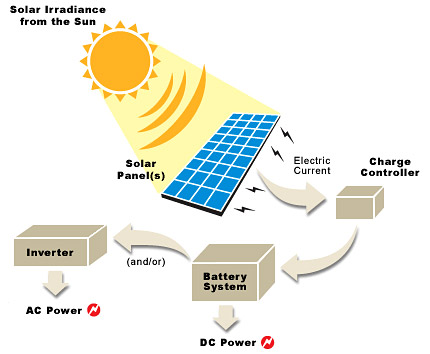

Independent Solar Home Power system
Solar energy house power supplies are low AC/DC power designed to meet the current market demands, integrating the functions of solar energy haring; Charging/discharging control and inverting these device are equipped with perfect controlling and protection functions and adopt humanistic designing for operation. They are featured in their simple structures and reliable performance.
The input voltage of the system is DC12V and output voltage is AC 220V and DC 12V. This product is mainly applied to the areas with shortage of electricity supply. With a solar energy generating low-power AC/DC power supply, this system is able to meet the power demands for daily livelihood, such as lights, televisions, VCD players, radios and computers, etc.
Solar energy collector: 10W~300W (imported multi-crystal silicon solar energy cells)
Accumulator cells: 12V12AH~300AH (maintenance-free lead-acid cell)
Load: 3W~450W
Controlling system: Controllers with specialized for solar energy devices;
Working time: 4~6hrs/day, power supply uninterrupted even after 3 rainy or cloudy days;
Temperature range: -30C ~65C;
Protection functions: Low-voltage protection, restore from low voltage, excessive voltage protection, excessive voltage restore, reversed hook-up protection, overload protection, short circuit protection and temperature compensation;
The entire system may accord the customer request design;

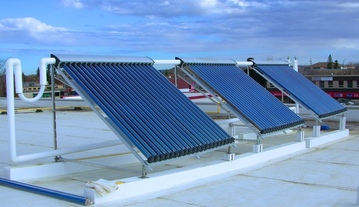

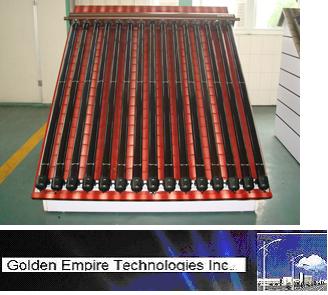

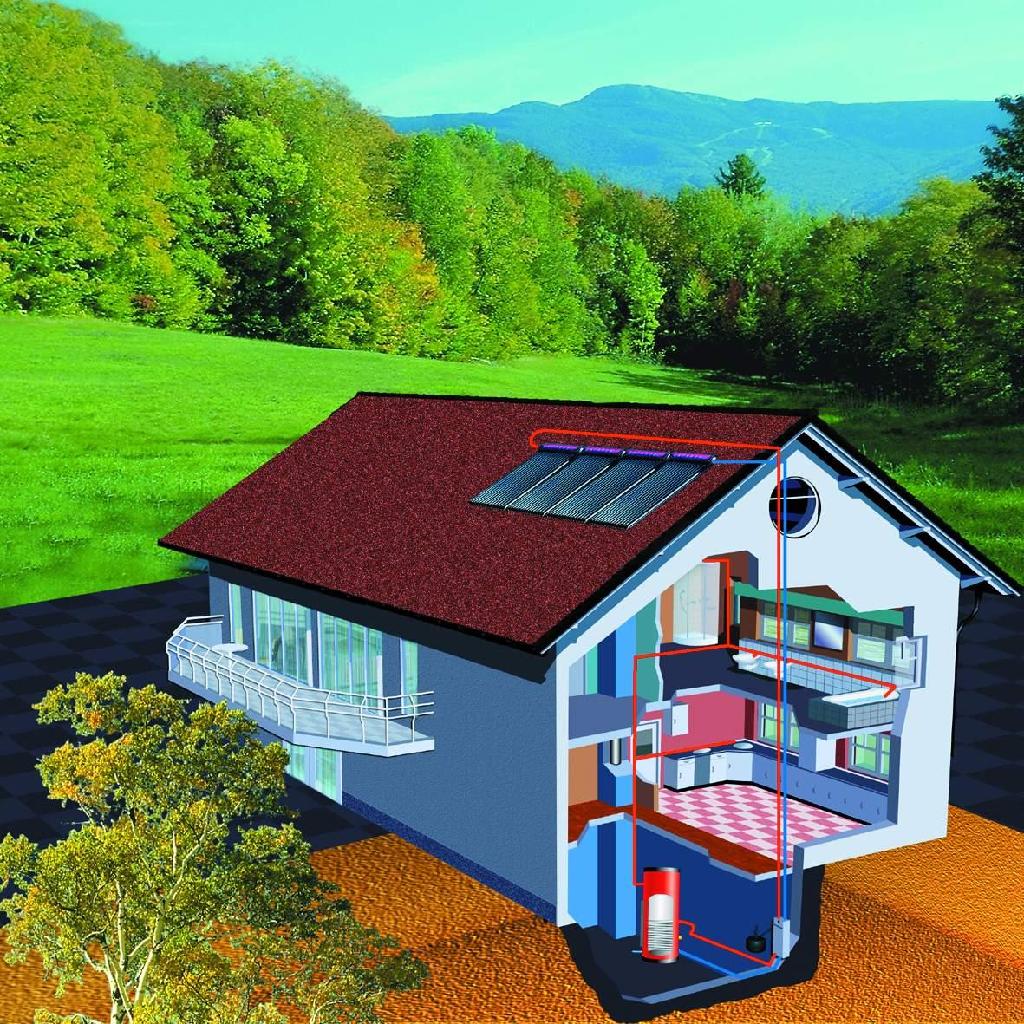

SOLAR WATER HEATING
Home | Solar Water Heating
Water heating is an easy and low cost way to use solar energy. There are different types of systems to use for domestic use (such as showers and baths, washing dishes and clothes, etc), swimming pools, spas and hot tubs.
Full Circle Solar sells and installs the Progressive Tube collector made by Thermal Technologies Corporation. This 40 gallon passive solar water heater is a self-contained unit that acts as collector and storage in one piece of equipment. The all copper collector has a selective surface coating, double glazing and a 10-year manufacturer’s warranty.
|

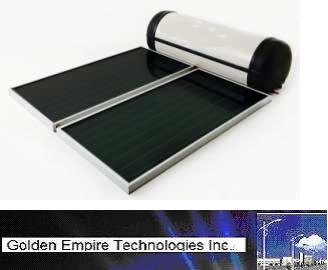

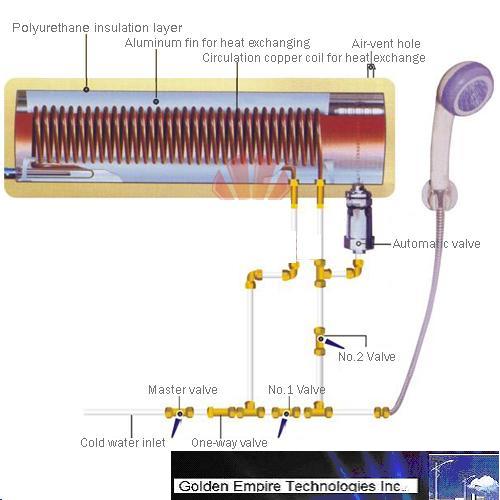

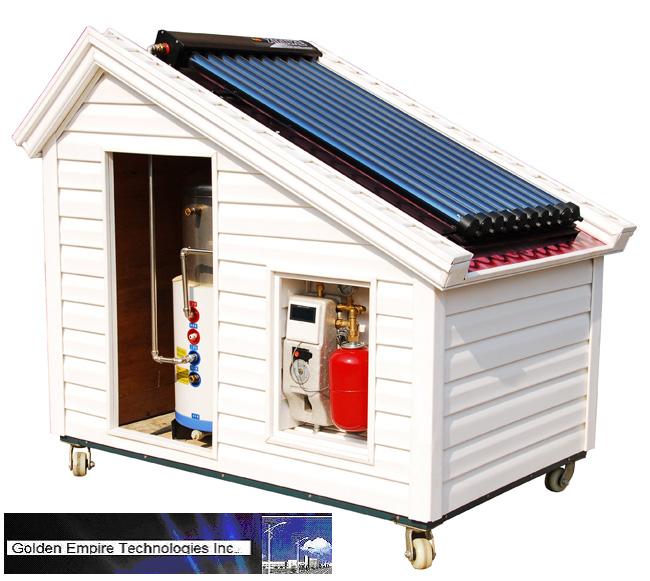

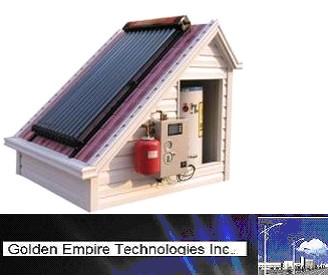

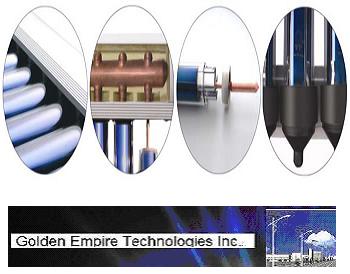

Balcony Style Solar Water Heater
Product Description
1) High efficiency solar collector using heat pipe evacuated tubes 2) Able to be used in all climates 3) Reliable and efficient with twin-glass solar tubes 4) Copper heat pipes for rapid heat transfer 5) Easy plug-in installation for mounting on roof, balcony or at ground level 6) Free maintenance 7) Suitable for pressure water (8 bars / 116PSI) 8) Corrosion resistant silver brazed copper header 9) Frame material: 304 2B grade standard steel 10) Casing material: 304 BA or AB stainless steel 11) Excellent insulator in polyurethane foam 12) Collectors be connected in series to increase water heating capacity 13) Tubes easily replaced if broken, can be used with broken tubes 14) Ideal for commercial solar water heating applications 15) Can be installed on the balcony or windows Solar Water Heater with Reflector (JYS008) Product
Description Inner tank: Food Grade Stainless Steel by argon protect welding, supply water quality and drinkable Outer shell: Galvanized Steel coated noncorrosive layer Heat insulation layer: 50-60mm import polyurethane integral foaming Frame: Galvanized Steel coated noncorrosive layer, both install inclined and flat roof. 5 years quality warranty |
||||||
|
Solar

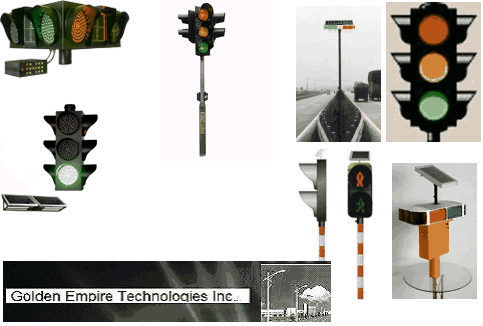

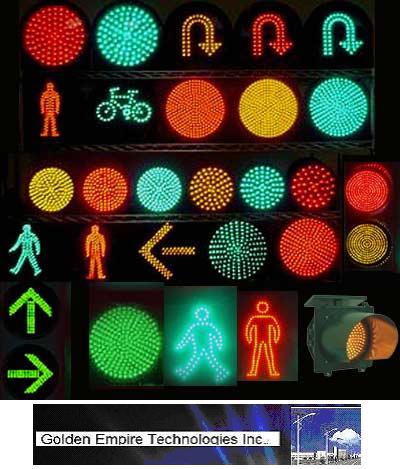

Traffic Signal Lights Product Description
Solar traffic signal lights may be directly used without the need of laying wires or trenching road. These lights, characterized by windproof, rainproof and anti-hail. They are mainly used in urban and rural road crossings and intersections as traffic signal or safety warning device for slow motion at road crossings

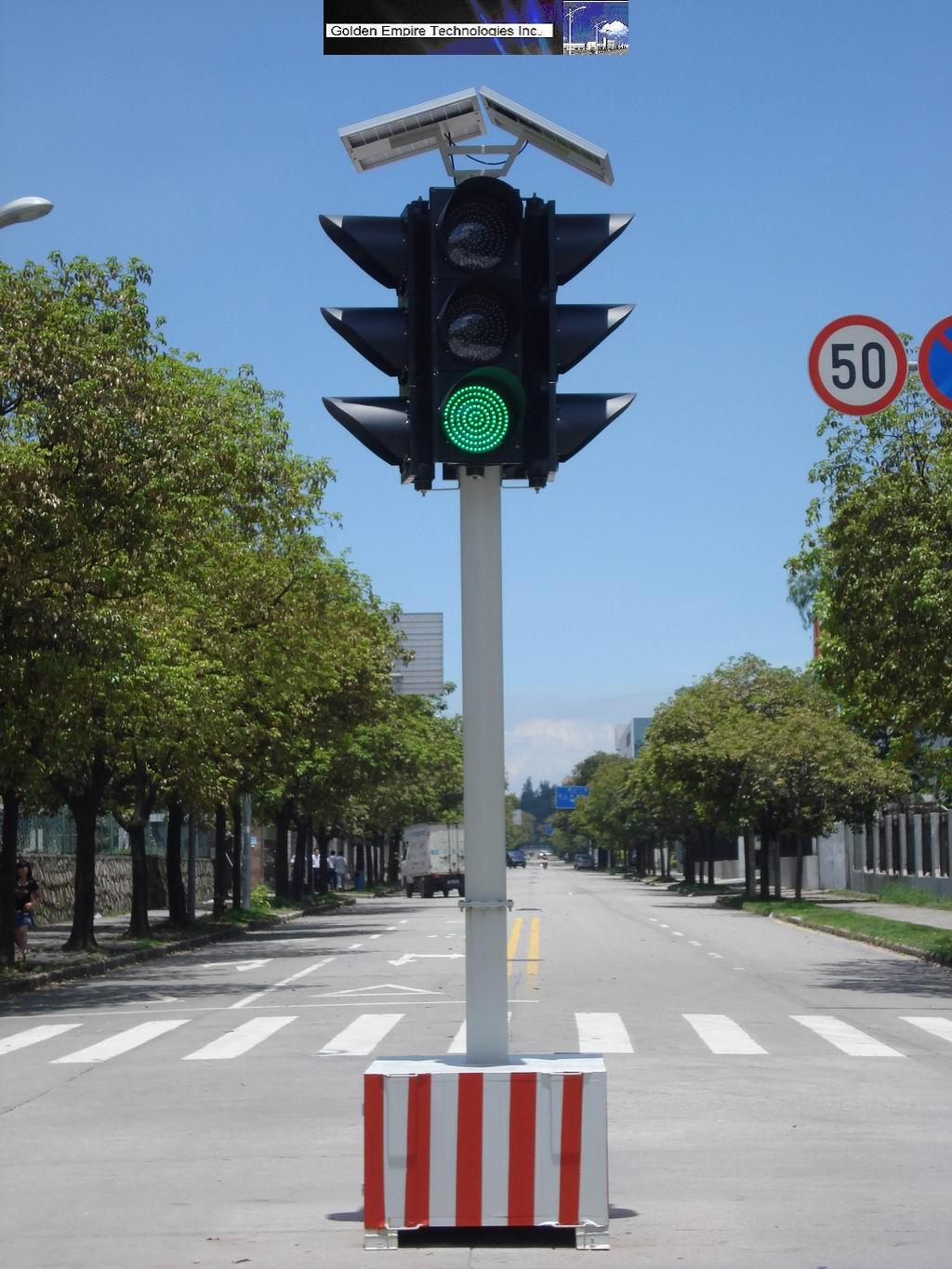

Solar Traffic Signal Light (SSL-001) TRAFFIC LIGHTS Product Description Body materials: Al and reflective material Solar panel: Mono or polycrystalline silicone Power: 5 to 10W Lead-acid battery: 12V/7 to 17Ah Controlled by sunlight or all weather blinking Size: 600, 800 and 1, 000mm Also can be made according to customer's requirement Solar panel: Mono or polycrystalline silicone

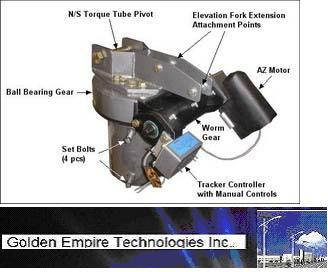

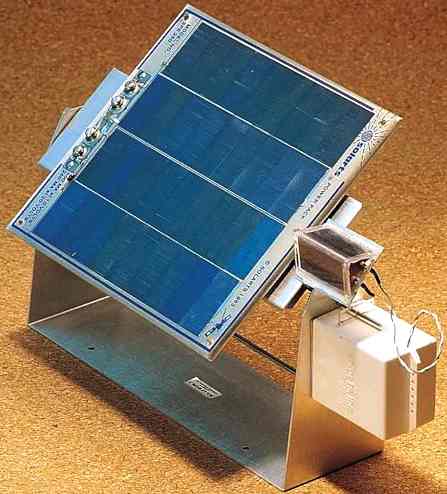

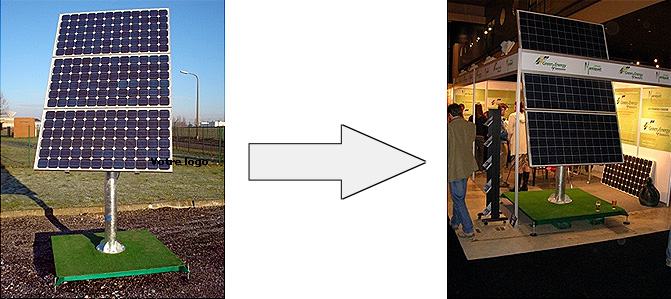

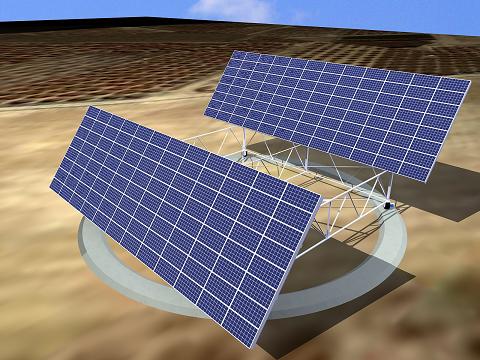

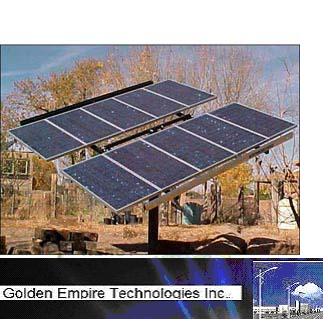

Solar Tracker System
Description:
The tracking solar housing is made up of east-west level azimuth and vertical elevation dual-axle automatic tracking system, so that it will keep the whole solar array tracking the sun accurately, and make the sun vertical with solar panels, in order to gain most sunshine and produce more power. The mechanical transportation part is made up of east-west level azimuth and vertical elevation with small driving clearance, high intensity accuracy and high deceleration ratio to ensure the firm and accuracy of the whole system. Because of high deceleration ratio of speed reducer, it decreases a lot of the drive power of engine, the power consumption of azimuth and elevation angle driving engines are less than 1 WP, which is 1/1000 of the power generation of power station. So it can be ignored. For the power station turns 180 per day from east to west, and it will turn back to the east during the night, that is to say, it only turns one lap per day. With the small abrasion of reducer, the designing life-span of whole speed reducing system is 20 years, so that the mechanical life-span of solar station will be higher. The dual axis tracking housing is made up of high precision sun displacement detector controller tracking machine cross beam bracket for solar module installation. Robust aluminum housing with a strong symmetric metal shaft. 'Polar mount', construction for an ideal single-shaft tracing of the solar circle. Motor turning up to 100°, which means almost 8 hours of perpendicular tracing of the sun. Technical Information Arm width: 1.15m Motor Shaft length: 560mm Max dimensions of a solar panel: 1.15m x 0.8m of aluminum structure, made for panels up to 1m2 in area Max weight of a solar panel: 20kg under the condition that the solar cell is turning through the center of gravity. Dimensions of package: 1175L x 135W x 200H Weight: 8kg Max safe wind speed: <160km/h Solar Powered Air-Condition Independent Solar Home Power system Solar
energy house power supplies are low AC/DC power designed to meet the current
market demands, integrating the functions of solar energy haring;
Charging/discharging control and inverting these device are equipped with
perfect controlling and protection functions and adopt humanistic designing for
operation. They are featured in their simple structures and reliable
performance. The input voltage of the system is DC12V and output voltage is AC 220V and DC 12V. This product is mainly applied to the areas with shortage of electricity supply. With a solar energy generating low-power AC/DC power supply, this system is able to meet the power demands for daily livelihood, such as lights, televisions, VCD players, radios and computers, etc. Solar
energy collector: 10W~300W (imported multi-crystal silicon solar energy cells) Accumulator cells: 12V12AH~300AH (maintenance-free lead-acid cell) Load: 3W~450W Controlling system: Controllers with specialized for solar energy devices; Working
time: 4~6hrs/day, power supply uninterrupted even after 3 rainy or cloudy days; Temperature range: -30C ~65C; Protection functions: Low-voltage protection, restore from low voltage, excessive voltage protection, excessive voltage restore, reversed hook-up protection, overload protection, short circuit protection and temperature compensation; The entire system may accord the customer request design;
SOLAR WATER HEATING Home | Solar Water Heating Water heating is an easy and low cost way to use solar energy. There are different types of systems to use for domestic use (such as showers and baths, washing dishes and clothes, etc), swimming pools, spas and hot tubs. Full Circle Solar sells and installs the Progressive Tube collector made by Thermal Technologies Corporation. This 40 gallon passive solar water heater is a self-contained unit that acts as collector and storage in one piece of equipment. The all copper collector has a selective surface coating, double glazing and a 10-year manufacturer’s warranty.
|
